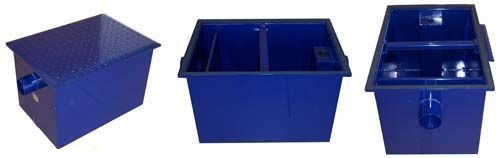

Mild Steel Grease Traps

Our MSGT range of value epoxy coated mild steel grease traps offer flexibility with the units installation either internal or external and can be located as floor standing trap or recessed within the ground.

The vast MSGT range covers applications from minimal flow rate and grease retention capacity for single prep sinks through to large kitchens for hotels with peak flow rates of up to 6.33 litres per second.

These units along with all our products are building regulations compliant , designed to the guidelines for the management of grease within part H section 2.21.

All of the MSGT range come as standard with a 5 year manufactures warranty.




MSGT Features

  • 5 Year Warranty
  • High grade epoxy coated mild steel construction
  • Single screw down lid for easy access
  • Rubber lid gasket for odour elimination
  • Seems fully welded for improved strength and durability

MSGT Benefits

  • Easy installation – connect using standard rubber couplers
  • Location can be either internally or externally
  • Installation can be floor standing or recessed
MSGT Range Applications

Application

Domestic Kitchen / Coffee Machine

Takeaway

Dishwasher

Small Kitchen
10-50 Covers

Medium Kitchen
51-100 Covers

Large Kitchen
101-150 Covers

Extra Large Kitchen
151+ Covers

Model

MSGT1

ü

MSGT2

ü

ü

MSGT4

ü

ü

MSGT7

ü

ü

ü

ü

MSGT10

ü

ü

ü

ü

MSGT15

ü

ü

ü

ü

ü

MSGT32

ü

ü

ü

ü

ü

MSGT49

ü

ü

ü

ü

ü


MSGT Range Dimensions

Dimensions (mm) and Capacity

A

B

C

Inlet / Outlet Diameter

Liquid Capacity Litres

Grease Capacity KG

Flow Rate
L/S

Model

MSGT1

380

230

270

50

10

4

0.24

MSGT2

440

330

340

50

22

7

0.47

MSGT4

630

420

360

50

45

14

0.95

MSGT7

670

460

430

75

70

24

1.58

MSGT10

810

530

500

75

105

32

2.08

MSGT15

840

620

600

100

150

45

3.16

MSGT32

1040

700

780

100

325

70

4.75

MSGT49

1135

800

800

100

490

90

6.33
